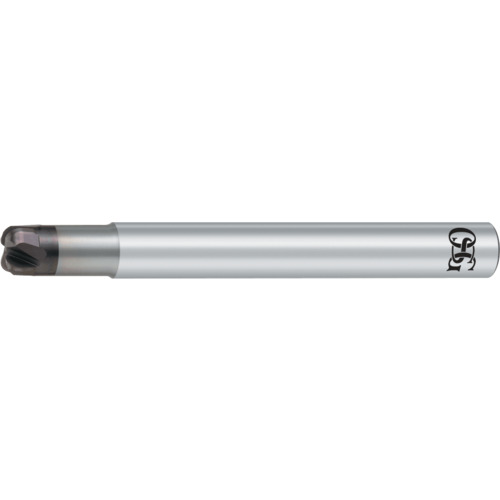

1/8″ Dia. × 1/4″ Shank × 0.063″ DOC × 2-1/4″ OAL, Carbide, WXS, 3 Flute, Round, Corner Radius, Solid End Mill
Corner Radius End Mill; 1/8″ Dia. × 0.063″ LOC × 1/4″ Shank Dia. × 2-1/4″ OAL ; 3 FL ; Carbide ; AlTiCrSiN ; Series 4470
| Cutting Diameter (DC) | 1/8″ | Corner Radius (RE) | 1/32″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.11″ |
| Depth of Cut Maximum (APMX) | 0.063″ | Neck Length (LN) | 3/8″ |
| Overall Length (OAL) | 2-1/4″ | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | AlTiCrSiN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 4470 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 1/32″ |
Product Features
| Remarks | •High Performance Micrograin Carbide •WXS Coating •Corner Radius •For High Feed Milling •Recommended for Carbon Steels, Alloy Steels, Tool Steels, Hardened Steels up to 65 HrC and Cast Iron | Country of Origin | Japan |
Shipping Info
Package Length
2.30000
Package Width
.55000
Package Weight
0.055
