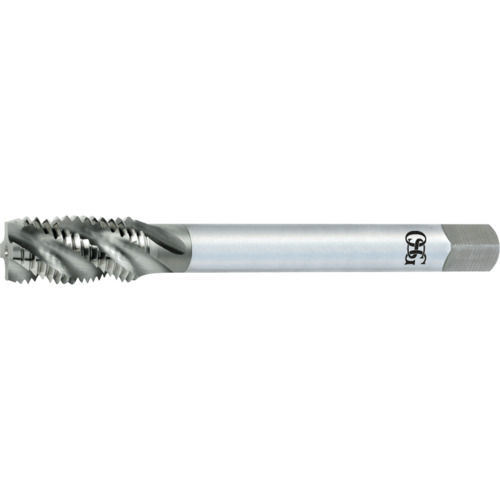

M10X1.25 3FL HS
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | 2 |
| Thread Pitch (TP) | 1.25 mm | Tool Type | Spiral Flute Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 75 mm | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 32 mm | Flute Type | Spiral |
| Usable Length (LU) | 41 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 123 |
Product Features
| Country of Origin | Japan |
Shipping Info
LocalField10
0
Package Length
3.65000
Package Width
.55000
Package Height
.55000
Package Weight
0.055
