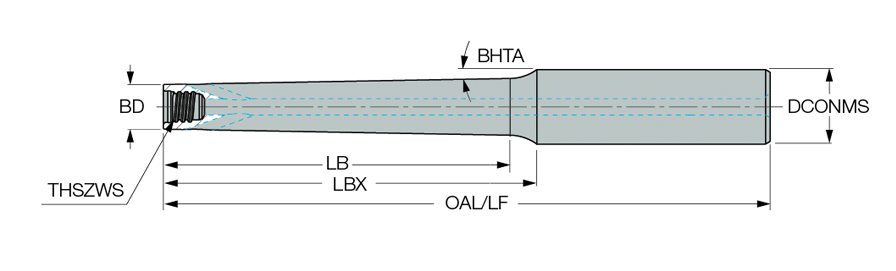

| Connection Diameter Machine Side (DCONMS) | 0.472″ | Tool Type | Cylindrical Shanks |
| Shank Type | Round | Measurement Type | Inch |
| Body Diameter (BD) | 0.378″ | Body Material | Tungsten |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 4.331″ |
Product Features

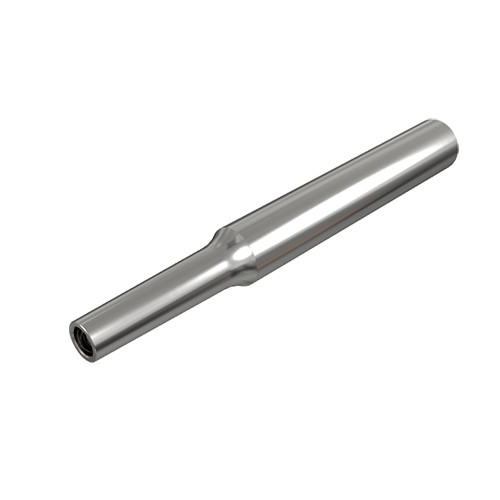

| Family Description | MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection. Shank Material (Shank m.): S-steel,C-carbide,W-tungsten. |
